Bikes City Antwerp Antwerp AP
The assembly of the product may differ from the photo. Be sure to check out the specifications.*

Antwerp AP

  • AP 5 - Shimano Nexus 5 Chain -€500.00
  • AP 8 - Shimano Nexus 8 - Gates CDX Belt
  • S/46
  • M/50
  • L/54
  • XL/58
What is my size?
Only available with other groupset.
€3,999.00

About

Antwerp AP

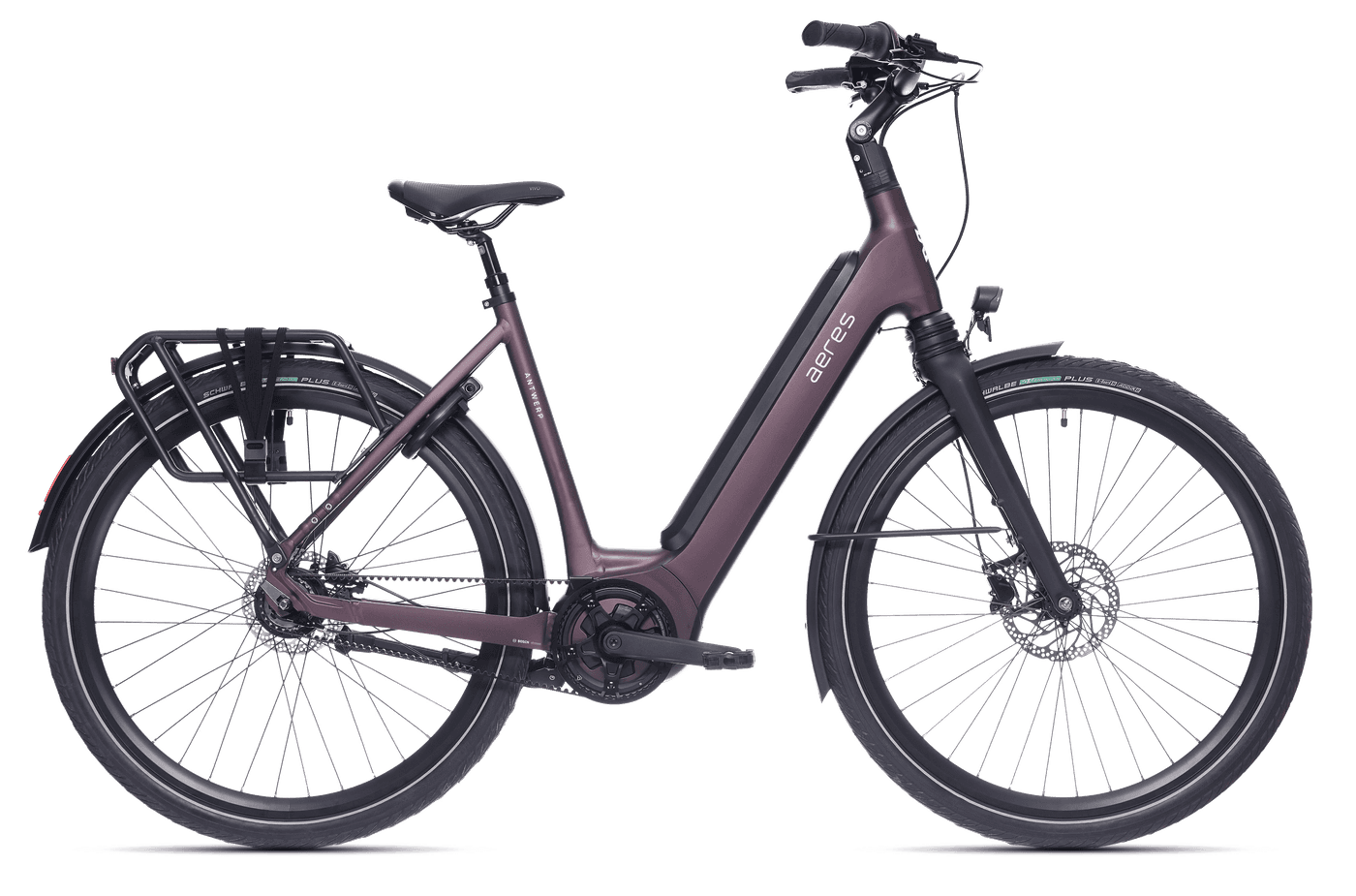

The Antwerp AP series is the ideal e-bike for daily rides and light excursions, featuring a low step-through frame, upright riding position, and smooth support from the Bosch Active Line Plus motor. Each model offers effortless comfort and versatility, while the MIK HD carrier can carry all your belongings. Choose between a robust chain version for city use or a low-maintenance belt drive for ultimate convenience and comfort.

Specifications

  • Material
    Aluminium
  • Fork
    Monoshock suspension fork
  • Drive Unit
    Bosch Active Line Plus, 50Nm, 25km/h
  • Battery
    Bosch PowerTube 625Wh
  • Groupset

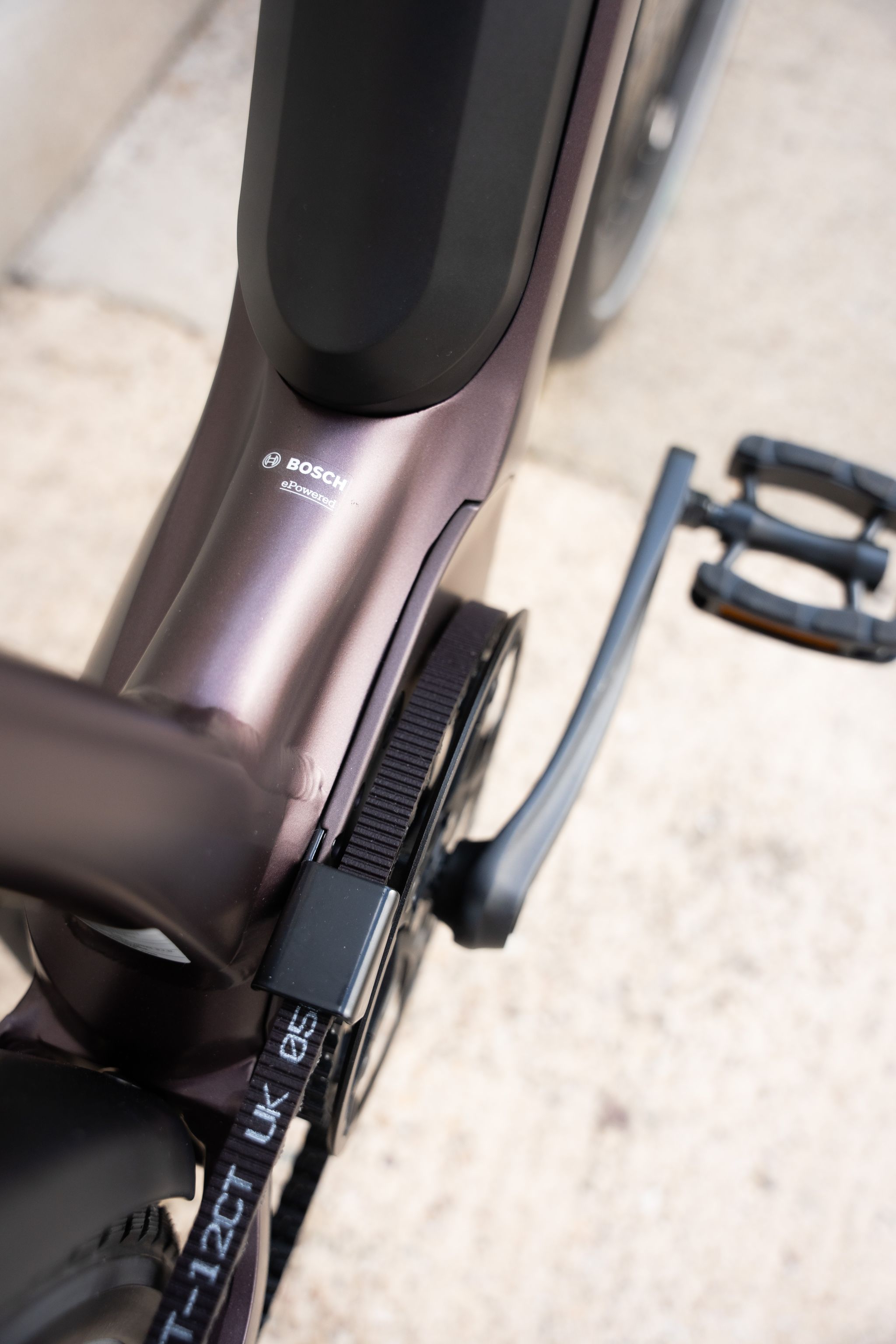

    AP 8 - Shimano Nexus 8 - Gates CDX Belt
  • Rear Derailleur
    No - Shimano Nexus 8 gearhub with Gates CDX belt
  • Brake Type
    Post Mount
  • Front Brake
    Shimano MT200 Hydraulic DB Front
  • Rear Brake
    Shimano MT200 Hydraulic DB Rear
  • Outer Tyre
    Schwalbe Energizer Plus Tour with puncture protection, 50mm
  • Stem
    Aeres adjustable stem
  • Seatpost
    Alloy suspension seatpost, 30,9mm
  • Saddle
    Selle Royal Vivo
  • Range
    City
  • Weight Limit
    150 kg (bike included)

Help & support

How can we help?

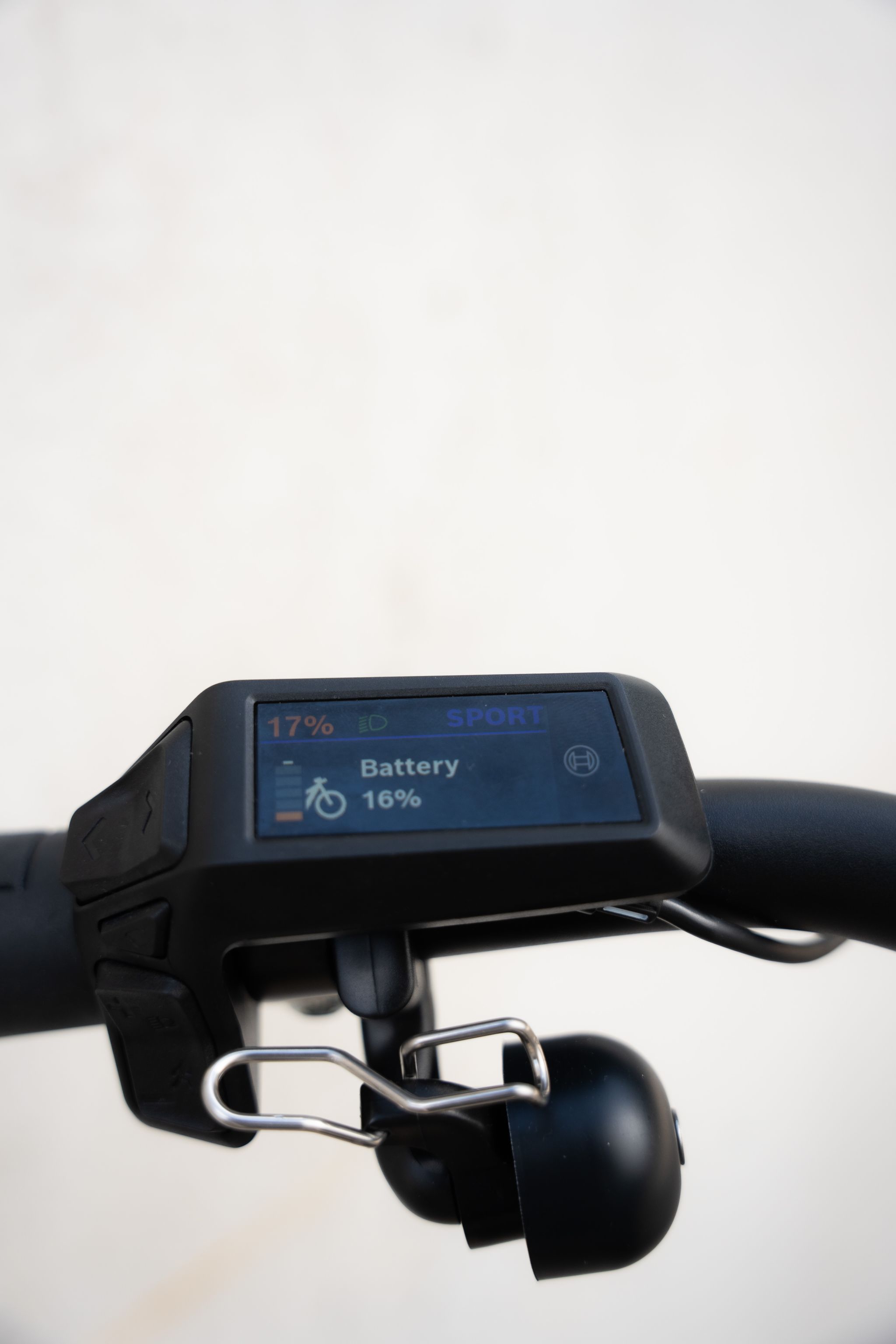

What display is used on the Antwerp?

 All models come with the Bosch Purion 200 display.

Is the battery removable and upgradable?

The Antwerp models use Bosch Powertube batteries in either 500Wh or 625Wh capacities. These batteries are interchangeable, meaning that a bike equipped with a 500Wh can be upgraded to a 625Wh battery as well as the other way round. The batteries of the Antwerp are removable.

What accessories are supported?

The Antwerp models come with a MIK HD carrier (up to 27kg) for easy accessory mounting.


The Antwerp models have a front light mounted on the fork and the display on the left hand side grip. This means that it is very easy to mount accessories to the handlebars (such as packs, baskets, map holders,...).

Can I adjust the saddle and handlebars easily?

Yes, you just need some basic tools.

What kind of motor system are being used on the Antwerp?

The Antwerp AP 5 and AP 8 both use the Bosch Active Line Plus. This is a quiet, lightweight mid-drive system that delivers smooth, natural pedal assistance up to 25 km/h, ideal for comfortable city rides and relaxed touring.

What is the range of this motor?

The estimated range of the Bosch Powertube 500Wh is between 75 and 150 kilometres per battery charge.

The estimated range of the Bosch Powertube 625Wh is between 94 and 188 kilometres per battery charge.

Geometry

S/46 M/50 L/54 XL/58
A Seat tube length 460 500 540 580
B Effective top tube length 580 600 620 640
C Seat tube angle 72,5° 72° 71,5° 71°
D Head tube angle 69° 69,8° 70,5° 71,2°
F Wheelbase 1127 1133 1139 1145
G Head tube length 170 180 190 200
RC Chainstay length 485 485 485 485
S Stack 604 626 648 670
R Reach 390 397 403 409
BBD BB drop 62 62 62 62
